● Small shrink tunnel for POF film
● Various specifications are available
● 110v, 220v or 380V optional
Video:https://youtu.be/8sMwHv0vQcQ
 |
|
|
|
I'm Online Chat Now
Certification

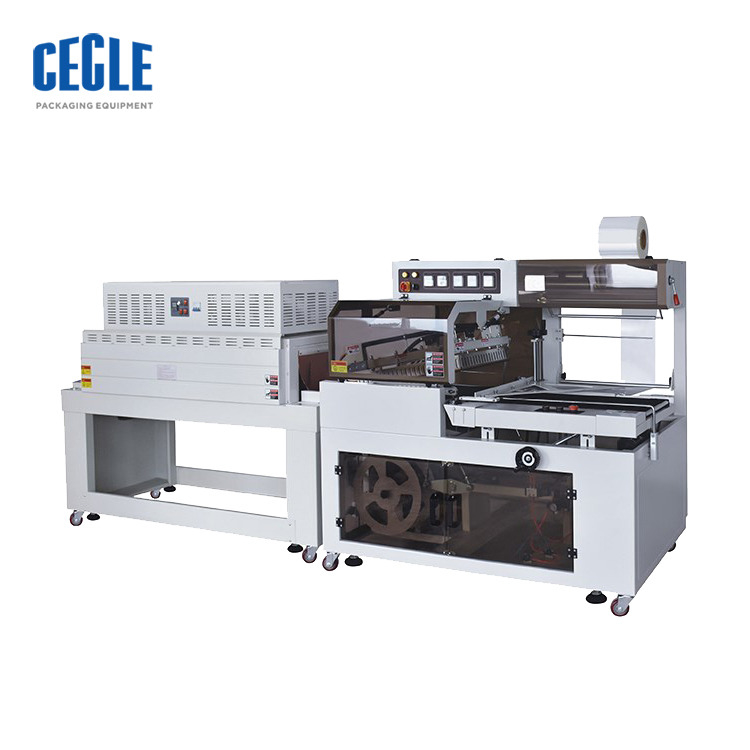

automatic L-bar shrink wrapping machine , box L sealer with shrink tunnel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Wrapping Machine | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Food & Beverage Shops, Advertising Company |
|---|---|---|---|
| After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Application: | Beverage, Commodity, Food, Machinery & Hardware | Packaging Type: | Bottles, CANS, Cartons, Case |
| Packaging Material: | Glass, Metal, Plastic, Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric And Pneumatic | Voltage: | 220V/380V 50Hz |
| Place Of Origin: | Zhejiang, China | Brand Name: | T&D |
| Dimension(L*W*H): | 185*100*160cm +135*75*150cm | Weight: | 300kg+220kg |
| Certification: | CE Certificate | After-sales Service Provided: | Online Support, Free Spare Parts, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year, 12 Months | Key Selling Points: | Easy To Operate |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Gear, Motor, Bearing, Gearbox | Name: | Thermal Shrink Sealing Machine |
| Air Source: | 5.5kg/cm3 | Packing Speed: | 30-50 Boxes/min |
| Packing Material: | POF |
Product Description
BSD series small shrink tunnel:
BSE series big shrink tunnel:
● Big shrink tunnel for PE film
● Various specifications are available
● 110v, 220v or 380V optional
Video:https://youtu.be/O1mGuqgmUwc
FQA-450+BSE-4522:
● L-bar sealing
● Automatic operation
● 110v, 220v or 380V optional
Video:https://www.youtube.com/watch?v=OUhFCH-bqqc&t=32s
FQS-450+BSE-4522:
● Side sealing, the length the product is not limited
● Automatic operation
● 110v, 220v or 380V optional
Video:https://https://youtu.be/I0bFVQcmDsk
BZJ-5038+BSE-5040A:
● Two open-end sealing
● Bottle and big item shrink wrapping
● 110v, 220v or 380V optional
Video:https://youtu.be/O1mGuqgmUwc
FQL-450+BSE-4525:
● L type sealing
● Semi automatic operation
● 110v, 220v or 380V optional
Vido:https://youtu.be/8sMwHv0vQcQ
FM-5540:
● 2 in 1 shrink wrapping
● Manual operation
● 110v, 220v or 380V optional
Vido:https://http://youtu.be/Tz2nFqJi-ho

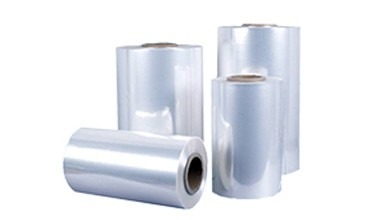

Roll film:
● Roll film for shrink wrapping used.
● Various specifications are available
Features:

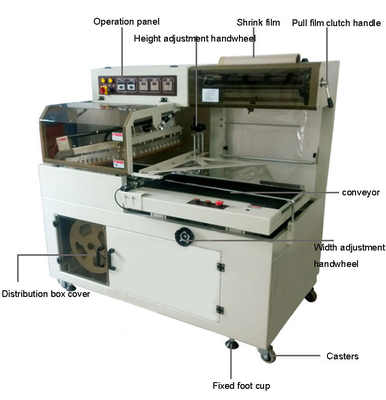

This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.
Application:
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Parameters:

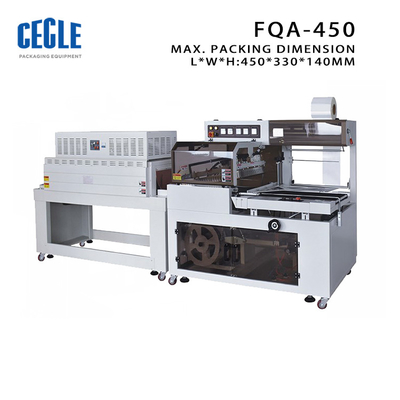

Model: | FQA-450 | FQA-550 |
Packaging Speed: | 15-30times/min | 15-30times/min |
Conveying Weight: | 10kg | 10kg |
Film Width: | 500mm | 600mm |
Max. Packing Size(L*W*H): | 450*330*140mm | 550*430*140mm |
Packaging dimension: | 1750*900*1450mm | 2020*1100*1600mm |
Voltage: | 220V 50-60hz | 220V 50-60hz |
Model: | BSE-4522 | BSE-5530 | ||||
Conveying Speed: | 1-15m/min | 1-15m/min | ||||
Conveying Weight: | 20kg | 20kg | ||||
Heating Power: | 10kw | 13kw | ||||
Shrink Tunnel Size(L*W*H): | 1250*450*220mm | 1500*550*300mm | ||||
Packaging dimension: | 1700*660*1350mm | 2070*900*1580mm | ||||
Voltage: | 380V 50-60hz | 380V 50-60hz | ||||
Detailed Images
Certifications
Our Company
Our Business
FQA
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
